Parts of the Device

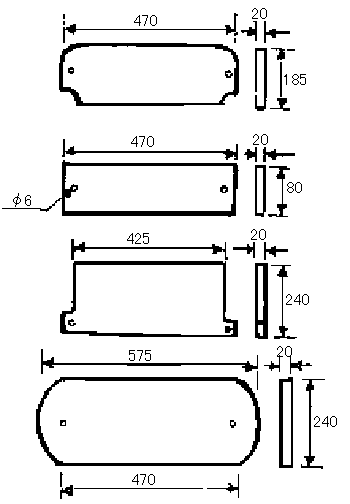

Seat and Backrest
- 20 mm (3/4") thickness (type of wood may vary)
- Dimensions in mm
- O = diameter
- Th = thickness
- R = radius
Nut/Bolt
|

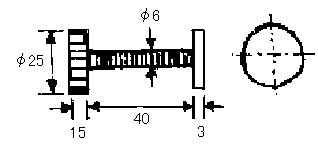

Brake
|
Large Wheel
|

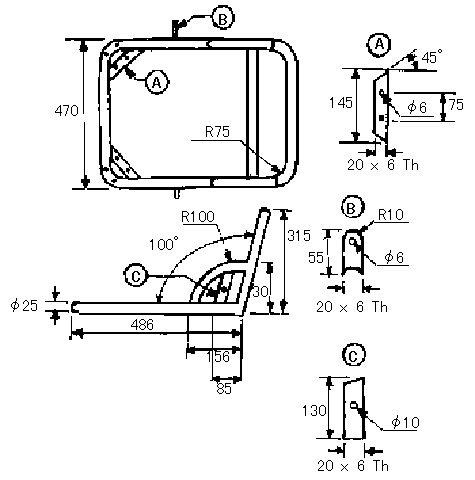

Mild steel pipe, 25 mm diameter, 16 gauge (1.5 mm)
| A: Castor mount | mild steel flat 6 mm x 20 mm |
| B: Brake mount | (same) |
| C: Large wheel mount (Two pieces of each) |
(same) |
Castor Wheel
|
Nut / Bolt
|
List of Parts
| Part | Material / specification | Qty. | Options |
|
Chilpine wood, 20 mm thick | 610 mm x 765 mm |
jute plastic wood |
|
Round head 6 mm diameter 38 mm length |
8 | - |
|
Plastic moulded bolt/washer 6 mm diameter 50 mm length |
2 | wooden knob metal lever |
|
Child tricycle solid rubber tyre, plastic or metal rim 10 mm axle, 270 mm x 40 mm |
2 2 |
wooden solid air tire |
|
Mildsteel pipe 25 mm diameter 16 gauge (1.5 mm) thick |
3050 mm approx | wood cane |
| Mildsteel flat 20 mm x 6 mm |
765 mm approx | wood | |
|
Standard, plate mounting rubber wheel/ nylon wheel 75 mm diameter, 30 mm width |
2 | wooden solid fixed |
|
Hexagonal 6 mm diameter 38 mm, 12 mm length |
4 | - |
