Nothing About Us Without Us
Developing Innovative Technologies
For, By and With Disabled Persons




Mobility Aids, a Walking Toilet,
and a Seeing-Eye Person for Carlos


CARLOS is the son of migrant farm workers from Oaxaca, one of the poorest states of Mexico. During harvesting season, his family used to come north to Sinaloa (the state where PROJIMO is located) to pick tomatoes. When he was 8 years old, Carlos already worked with his parents in the fields. Sadly when he was 10, the boy was hit by a truck and his brain was severely damaged. He remained mentally and physically disabled, and also visually impaired.

Months after his accident, Carlos was taken to PROJIMO by state social workers. While he was still in the hospital, his parents had abandoned him. Apparently they had gone back to Oaxaca, without leaving an address. The social workers asked if PROJIMO could provide rehabilitation for the boy. In effect, PROJIMO became Carlos' new family.

On arrival, Carlos already had secondary physical and emotional problems. His spastic body had become very stiff, and he had contractures of his hips and knees. He was almost totally blind, and his mind did not function well. He had very little short-term memory and difficulty learning even simple things. The few words he spoke were mostly abusive swear words. He got angry easily, and often cursed and spit at persons trying to help him. He would repeatedly plead "I want water!" or "I want food!" even when he had just had plenty to eat and drink. He constantly wet and pooped his clothing and bed.

A wheelchair adapted to his size and needs.

Carlitos (as he was affectionately called) needed a lot of personal assistance, plus a huge amount of understanding and patience. Fortunately, an older woman named Rosa, who has worked at PROJIMO for years, became like a mother to him. Rosa lovingly bathed him and washed his soiled clothes 2 or 3 times a day.

Mobility. To help Carlitos move himself about, one of the first things the shop-workers did was to build a wheelchair adapted to his size and needs. At first he could not move his wheelchair at all. But, little by little, he learned to roll it about. In time, he could more or less find his way on the pathways between buildings.

He loved playing in water.

Water Play as Therapy. In preparation for standing and walking, the team helped Carlitos with range-of-motion and stretching exercises. These helped to correct contractures and reduce the spasticity of his hips and knees. At first, he angrily resisted the exercises. But when the team tried working - and playing - with him in water, he loved it. The water supported his weight and let him move without the fear of falling. His pleasure and activity in the water seemed to help his stiff body to loosen up.


Standing. Although Carlitos' knees still bent stiffly when he tried to stand, the team felt he had the potential for learning how to stand and walk. At first he was non-cooperative, and understandably so. After nearly a year without weight-bearing, standing hurt his feet. But with daily practice his feet toughened.

The team found that the best way to get Carlos to try to stand was to put him with another child who was learning to stand.

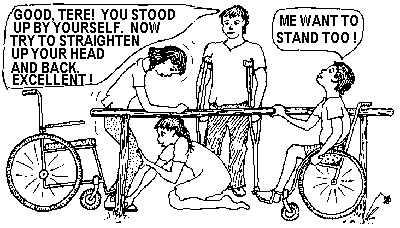

Me want to stand too!

Carlitos watched Tere trying to stand at the parallel bars. When Tere's helpers praised her enthusiastically for her efforts, Carlitos suddenly said, Me want to stand! He made an effort to do so ... and finally succeeded in pulling himself up to stand.


Jaime, on the gurney, designed a walker.

To make the folding mechanism, Jaime used the same recent innovation that the shop workers use on an improved design of the Whirlwind wheelchair (see p.190).

Walking. When Carlitos first tried to stand at the parallel bars he had very poor balance. He practiced daily. Little by little, his balance improved until he could take a few steps, holding onto the bars.

Carlos with his walker.

After months of practice, he learned to walk back and forth between the bars with fair stability. When Carlos began to say "I want walker!" the team asked Jaime to design a walker that would meet the boy's needs.

Mari and Inez tested him with walkers of different sizes and heights. At last they found a combination of features that allowed him to stand straighter and more firmly. Jaime, a paraplegic wheelchair builder who works lying on a gurney (wheeled cot), built the walker out of steel tubing. He used thin-wall electric conduit tubing, the same material used to make the wheelchairs.

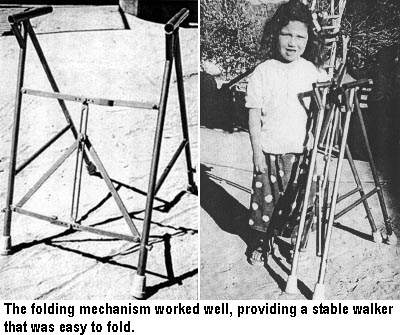

The folding mechanism worked well, providing a stable walker that was easy to fold.


A Wooden Walker with a Seat

Carlitos enjoyed walking with his new metal walker. But his attention span was brief and he tired quickly. After a few minutes, he would want to sit in his wheelchair. And a few minutes later, he would want to walk again. Because he was blind and had difficulty remembering, it was hard for him to find things. All day long he would call out to people to bring him his walker or his wheelchair. When everyone was busy there was sometimes a delay, and he would get angry and frustrated. "Carlos want walk NOW!" he would wail.

One day, Juán, a disabled carpenter and brace-maker, asked Carlos, "Carlitos, would you like a walker with a seat on it, so that you can sit down and rest when you're tired of walking?"

"Yes" said Carlos eagerly. "Carlos want walker with seat." So Juán made him a unique wooden walker with a seat.

Carlos walks with his wooden walker. Carlos sits and rests in his walker.

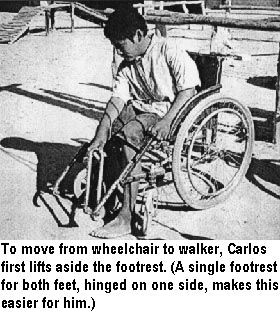

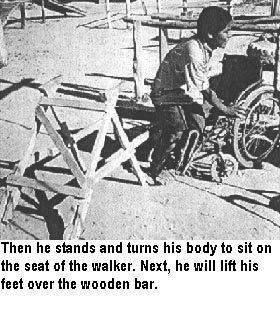

To move from wheelchair to walker, Carlos first lifts aside the footrest. (A single footrest for both feet, hinged on one side, makes this easier for him.) Then he stands and turns his body to sit on the seat of the walker. Next, he will lift his feet over the wooden bar.

Although transferring from his wheelchair to the wooden walker required stepping over the wooden bar that supported the seat, Carlos soon learned to transfer without help.

With his new walker, Carlos became more independent. He no longer needed to always ask people for help, and he began to take pride in doing things for himself. His self-help skills in walking helped prepare him for a better response to toilet training (see p.212).


A "Seeing-Eye Person" for Carlos. With his walkers, Carlos' walking improved. But being blind, he had a hard time finding his way. Someone suggested a seeing-eye dog. But it was easier to provide a "seeing-eye person."

Seeing-eye person for Carlos was Tere.

At PROJIMO there are always young wheelchair users who have trouble moving about by themselves. These include Tere and Lupita, who have spastic arms and legs. One day, Tere was practicing standing at the parallel bars. At the same time, Carlos was walking in circles around the outside of the bars, holding on with only one hand. To do this, Carlos had to circle around Tere's wheelchair. Once when he took hold of the handles of her wheelchair, he laughed and tried to push it, like a walker. That gave Rosa an idea.

A Wheelchair as a Walker. When Tere finished her standing session at the bars, she said she wanted to go to the laundry area to wash her clothes. Because she has difficulty moving her wheelchair on the uneven ground, she asked Rosa to push her. Half-joking, she said, "Carlitos, why don't you push Tere to the laundry area?"

Tere told the blind boy where to go.

Carlos grinned with excitement. "Yes! Carlitos want push Teresita!"

At first Tere was reluctant. Although she and Carlos were friends, she feared he would wheel her into a pit or tree. But Rosa explained to Tere that, by letting Carlos push her, she would be helping him with his therapy, his independence, and his self-esteem. So Tere agreed to give it a try.

Rosa guided Carlos' hands to the handles of Tere's wheelchair. Carlos pushed it eagerly. To keep on course, Tere told the blind boy where to go. At first he was confused. But after a while he learned to tell "Left!" from "Right!" and steer accordingly. Carlos had never seemed so happy, nor Tere more scared.

Carlos took great pride in his new role as a wheelchair attendant.

Carlos as a wheelchair-rider's attendant.

By that afternoon, Carlitos proudly also began to help Lupita move from one area of the playground to the other. He was walking more and better than he had ever walked before. And he was able to find his way, thanks to his "seeing eye persons." This mutual self-help by persons with different disabilities helped to build self-confidence in all who were involved, Carlos took great pride in his new role as a "wheelchair attendant."

Peer therapy. Tere, likewise, took pleasure in knowing that she was helping Carlos both develop his walking skills and gain a sense of being useful and appreciated. Lupita, whose mental handicap is as great as that of Carlos, was all smiles with the enthusiastic services of her newly found driver. In this way, multiply disabled young people have learned to help one another.


Toilet Training as Preparation for Standing, Balance, and Manual Skills

Carlos' toilet training advanced slowly, with modest gains. At first, he always pooped in his cot at night. Then he began occasionally to crawl off his cot and poop on the floor. To reinforce this response and take it further, Juán - with the help of two village school children - made a simple wooden toilet seat that could be placed over a bucket next to Carlos' cot.

Carlos energetically sands his own toilet seat.

To involve Carlos more with making his toilet, the group asked him if he wanted to help sand the wooden seat. Carlos, always eager to "work," responded, "Yes, Carlos want sand toilet." Perhaps because he had already tried sitting on the toilet and identified it as his, he did the sanding with more energy and persistence than usual.

The next step was practice using his toilet. This involved sitting on the edge of the bed, standing up (while holding a metal bed frame turned on its side at the head of the bed), unbuttoning and loosening his pants, lowering his pants enough to avoid soiling them (while leaning against the bed frame), and sitting on the toilet. After using the toilet, he learned to repeat the same steps in reverse.

Steps in Carlos' toileting practice:

1. Moving from wheelchair to cot. 2. Standing up holding the bed frame. 3. Loosening his pants.

4. Shifting to the toilet. 5. Sitting on the toilet.

Carlitos still has a long way to go until he has no accidents in his bed. But his bedside potty not only helps him with toilet training, it also helps with standing, balance, dressing and undressing skills, body coordination, and manual dexterity. He is eager to learn new skills, and takes pride in having helped make the toilet he is learning to use.

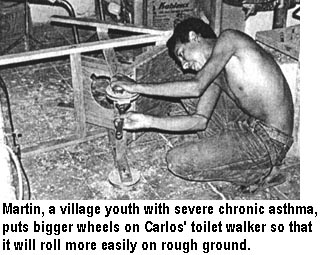

Martín, a village youth with severe chronic asthma, puts bigger wheels on Carlos' toilet walker so that it will roll more easily on rough ground.

Problem. Carlos' new walker-with-a-seat (described on page 210) allowed him to sit down when and where he wanted. But the design had one big problem. Because the seat was mounted behind the space where he stood to push the walker, the whole device was over a meter long. This made moving in close quarters very cumbersome. If Carlos was to learn to walk to the dining room, he needed a walker that was more compact.

Carlos' compact walker with the seat in front of him. Transfering from the wheelchair.

To solve this problem, PROJIMO designed a compact walker with the seat in front of him, not behind. Although he had to turn around to sit down, this walker had the advantage that it had no poles to step over.

Also, it simplified transfers from the wheelchair. Carlos could wheel his wheelchair between the rear legs of the walker, take hold of the walker's handle-bars and easily stand up.

Adaptation for urinating. One complication to having the seat of his walker in front of him was hygiene. Now that Carlos was partly toilet-trained, to urinate he would simply stand up and lower his pants. With his old walker (with the seat behind) that was all right. But to avoid wetting the forward-positioned seat of the new walker, the seat needed to be hinged so that Carlos could lift it out of the way before urinating.

After a few days of coaching, Carlos took pride in lifting the seat before urinating. The hinges for lifting the seat consist of a bolt slipped through holes in the walker frame and the seat frame.


Carlos would park his walker in the shade of the trees, sit on the seat, and lean over to feel with his hands for the fallen fruits.

Adding a potty. The idea to adapt the walker as a portable toilet came from necessity. It was springtime. The plum trees at PROJIMO hung heavy with fruit. The ripest plums fell to the ground. Carlos would park his walker in the shade of the trees, sit on the seat, and lean over to feel with his hands for the fallen fruit. In a short time, he would stuff his belly to bursting.

But this feast had a nasty side effect: diarrhea. Because Carlitos was blind and forgetful, he had not learned to take himself to the outhouse. Sometimes, when he had to go in a hurry, he called someone to take him. And sometimes he would poop in his pants. Rosa, who had to bath him and wash his clothes, was at her wits end.

To solve this problem, Polo helped to convert Carlos' walker into a mobile toilet. He cut a hole in the seat to hold a plastic bowl. Supported by its rim, the bowl could be lifted out to empty it. To use as an ordinary seat, a square board, hinged at the back, could be lowered over the bowl. To urinate, Carlos could swing the whole toilet up out of the way.

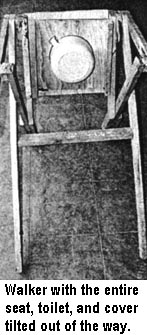

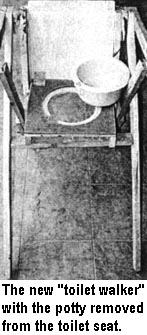

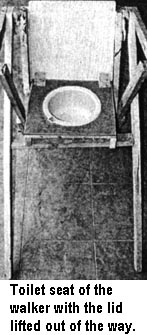

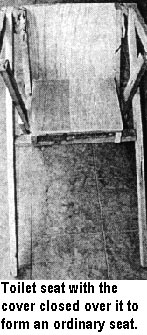

The new "toilet walker" with the potty removed from the toilet seat. Toilet seat of the walker with the lid lifted out of the way. Toilet seat with the cover closed over it to form an ordinary seat. Walker with the entire seat, toilet, and cover tilted out of the way.

The invention saved the day. From one day to the next, Carlos became more independent in his toileting. The stimulation caused by his high-plum diet gave him plenty of practice, and he quickly learned to lift the lid and lower his pants.

Carlos proudly uses his new mobile toilet.

What he never learned to do was to empty his potty. We all learned - the hard way - about the need to empty Carlos' potty often enough, especially during plum season.

One day, when he had filled his potty to the brim, he lost his bearings and fell over with his walker. He and the walker were covered with the potty's rank contents. Cecilia and the author helped with the clean up. It was no fun!

But, despite the occasional mishaps, Carlos loved his new walker. It not only gave him new freedom to move about, but helped him become more fully self-sufficient with his toilet.



Carlos' physical and mental abilities have improved.

Bit by bit, in the 3 years that Carlos has been at PROJIMO, both his physical and mental abilities have improved. He has remembered songs from early childhood, and has learned new ones. He now talks more cleverly, remembers people's names, gets angry less often, and laughs gladly in response to friendliness or assistance. His common phrases now include "I want to walk" and "I want to work." He takes pride in using his toilet, and in staying dry and clean (sometimes).

It was a day for celebration when, at last, Carlos began to stand without any support or assistance.

His attention span is still brief, but for several moments at a time, he helps with activities in the toy shop. All in all - through a team effort in which disabled persons help each other - Carlos has come a long way.

Most important of all, Carlos has made friends and learned how to enjoy life and people.

In addition to better balance, he now has more self-confidence in his abilities. It was a day for celebration when, at last, Carlos began to stand without any support or assistance.
